HSEB 3125 L AU / SW | SCHÜTZINGER

4 mm socket, solder/plug-in connection, CAT IV, black, HSEB 3125 L AU / SW

Order No.: 86F0959
EAN: 4099891974947
MPN:
HSEB 3125 L AU / SW
99008302
Series: HSEB
HSEB 3125 L AU / SW SCHÜTZINGER Laboratory Connectors

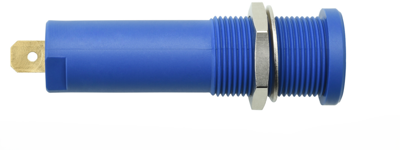

Image may differ
Unit Price (€ / pc.)
5.0099 € *
Available: 0 pcs.
Leadtime: 3 Weeks **
Total Price:
5.01 € *
Price list
Quantity
Price per unit*
1 pcs.
5.0099 €
10 pcs.
4.7362 €
50 pcs.
4.4506 €
100 pcs.
4.1769 €
500 pcs.
3.9032 €
*incl. VAT plus shipping costs
**Subject to prior sale

High voltage safety threaded socket, HSEB 3125 L AU / SW, SCHÜTZINGER

High voltage safety threaded socket for fixture in panels up to 13.5 mm thick at max. 5 kV and up to 8 mm thick at max. 6 kV, fixed by: hexagon nut M12 x 0.75 and spring washer, hole Ø 12.2+0.1 mm.

Features

  • Fixture using special tools MWZ 8 and open-end spanner
  • Fits to our high voltage safety test lead
Technical specifications
Anschluss Löt-/Steckanschluss
Ausführung Buchse
Bemessungsspannung 1000 V/600 V
Bemessungsstrom 16 A
Berührungssicher Yes
Durchmesser 4 mm
Farbe schwarz
Kontaktoberfläche vergoldet
Länge 48 mm
Messkategorie CAT IV
Logistics
Ursprungsland DE
Zolltarifnummer 85366990
Compliance
RoHS konform Yes
Stand der RoHS-Richtlinie 3/31/15
SVHC frei Yes
