IBU 2011 NI / BL | SCHÜTZINGER

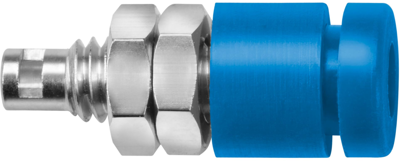

2 mm socket, solder connection, mounting Ø 5.1 mm, blue, IBU 2011 NI / BL
Unit Price (€ / pc.)
1.8326 € *
Available: 10 pcs.
Leadtime: On Request **
Total Price:
1.83 € *
Price list
Quantity
Price per unit*
1 pcs.
1.8326 €
10 pcs.
1.6898 €
50 pcs.
1.5589 €
100 pcs.
1.4637 €
500 pcs.
1.3804 €
*incl. VAT plus shipping costs
**Subject to prior sale
• for insulated fixture
• with moulded head
• hole Ø 5.1 mm
• contact parts nickel-plated
• solder terminal up to 0.75 mm²
• insulation PA 6.6 (Polyamid)
Technical specifications
| Anschluss | Lötanschluss | |
| Ausführung | Buchse | |
| Bemessungsspannung | 30 VAC/60 VDC | |
| Bemessungsstrom | 10 A | |
| Berührungssicher | No | |
| Durchmesser | 2 mm | |
| Einbaudurchmesser | 5.1 mm | |
| Farbe | blau | |
| Kontaktoberfläche | vernickelt | |
| Länge | 17.5 mm |
Download
Logistics
| Ursprungsland | DE |
| Zolltarifnummer | 85366990 |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | No |
| Substanz Beschreibung | Blei |
