IBU 401 NI / GR | SCHÜTZINGER

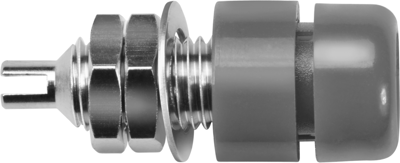

4 mm socket, solder connection, mounting Ø 7.5 mm, gray, IBU 401 NI / GR
Unit Price (€ / pc.)
1.3804 € *
Available: 0 pcs.
Leadtime: 2 Weeks **
Total Price:
1.38 € *
Price list
Quantity
Price per unit*
1 pcs.
1.3804 €
10 pcs.
1.2733 €
50 pcs.
1.1781 €
100 pcs.
1.1067 €
500 pcs.
1.0353 €
*incl. VAT plus shipping costs
**Subject to prior sale
• for insulated fixture
• with screwed insulated head
• hole Ø 7.5 mm
• for fixture in panels up to 3 mm thick
• contact parts nickel-plated
• insulation PA 6 (Polyamid)
Technical specifications
| Anschluss | Lötanschluss | |
| Ausführung | Buchse | |
| Bemessungsspannung | 30 VAC/60 VDC | |
| Bemessungsstrom | 32 A | |
| Berührungssicher | No | |
| Durchmesser | 4 mm | |
| Einbaudurchmesser | 7.5 mm | |
| Farbe | grau | |
| Kontaktoberfläche | vernickelt | |
| Länge | 24.5 mm |
Download
Logistics
| Ursprungsland | DE |
| Zolltarifnummer | 85366990 |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | No |
| Substanz Beschreibung | Blei |
