IBU 401 NI / WS | SCHÜTZINGER

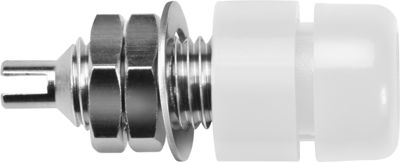

4 mm socket, solder connection, mounting Ø 7.5 mm, white, IBU 401 NI / WS

Order No.: 86F0222
EAN: 4099889675191
MPN:
IBU 401 NI / WS
99001923
Series: IBU 401
SCHÜTZINGER
IBU 401 NI / WS SCHÜTZINGER Laboratory Connectors
Image may differ
Unit Price (€ / pc.)
1.3804 € *
Available: 0 pcs.
Leadtime: 1 Week **
Total Price:
1.38 € *
Price list
Quantity
Price per unit*
1 pcs.
1.3804 €
10 pcs.
1.2733 €
50 pcs.
1.1781 €
100 pcs.
1.1067 €
500 pcs.
1.0353 €
*incl. VAT plus shipping costs
**Subject to prior sale

Socket Ø 4 mm

Features

  • For insulated fixture
  • With screwed insulated head
  • Hole Ø 7.5 mm
  • Contact parts: nickel-plated
  • Insulation: PA 6 (Polyamid)
  • Rated voltage: 33 VAC / 70 VDC
  • Rated current: 32 A
Technical specifications
Connection solder connection
Version socket
Rated Voltage 30 VAC/60 VDC
Rated current 32 A
Touch safe No
diameter 4 mm
Installation diameter 7.5 mm
Colour white
contact surface nickel-plated
Length 24.5 mm
Logistics
Customs tariff number 85366990
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free No
Substance description Lead
