SAB 6922 AU / GN | SCHÜTZINGER
4 mm socket, screw connection, mounting Ø 12.2 mm, CAT III, green, SAB 6922 AU / GN
Unit Price (€ / pc.)
4.9028 € *
Available: 0 pcs.
Leadtime: 1 Week **
Total Price:
4.90 € *
Price list
Quantity
Price per unit*
1 pcs.
4.9028 €
10 pcs.
4.6291 €
50 pcs.
4.3554 €
100 pcs.
4.0936 €
500 pcs.
3.8199 €
*incl. VAT plus shipping costs
**Subject to prior sale

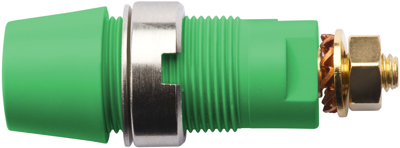

Panel sockets, 4.0 mm, type Schützinger SAB 6922.

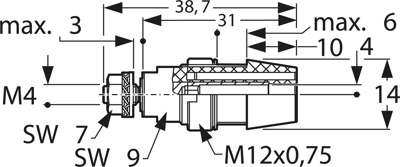

To IEC 61010, for 4.0 mm safety laboratory plugs, for installation in front panels with thickness up to 6.0 mm, mounting by means of M 12 x 0.75 slotted nut and spring washer, with M 4 thread connection; Diameter mounting hole: 12.1 mm. Housing material: PA 6.6, UL 94 V-2. Contact parts: gold-plated. Rated voltage: 1000 V, CAT III. Rated current: 32 A. Contact resistance: 5.0 mohm. Operating temperatures: - 25 to +80 °C.
Gold-plated.
Technical attributes (type, color): SAB 6922 Au/GN, green
Technical specifications
| Connection | screw connection | |
| Version | socket | |
| Rated Voltage | 1000 V | |
| Rated current | 32 A | |
| Touch safe | Yes | |
| diameter | 4 mm | |
| Installation diameter | 12.2 mm | |
| Colour | green | |
| contact surface | gold-plated | |
| Length | 38 mm | |
| Rated category | CAT III |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 85366990 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | No |
| Substance description | Lead |
