SEB 7080 NI / GN | SCHÜTZINGER

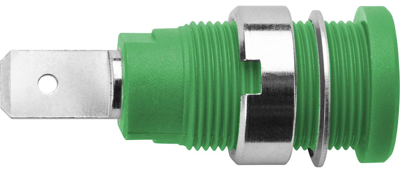

4 mm socket, flat plug connection, mounting Ø 12.2 mm, CAT III, green, SEB 7080 NI / GN

Order No.: 86F0383
EAN: 4099889675993
MPN:
SEB 7080 NI / GN
99015967
Series: SEB 7080
SCHÜTZINGER
SEB 7080 NI / GN SCHÜTZINGER Laboratory Connectors
Image may differ
Unit Price (€ / pc.)
1.5232 € *
Available: 0 pcs.
Leadtime: On Request **
Total Price:
1.52 € *
Price list
Quantity
Price per unit*
1 pcs.
1.5232 €
10 pcs.
1.4399 €
50 pcs.
1.3566 €
100 pcs.
1.2733 €
500 pcs.
1.1781 €
*incl. VAT plus shipping costs
**Subject to prior sale

Safety threaded socket, SEB 7080 NI / GN, SCHÜTZINGER

Features

  • For fixture in panels up to 6 mm thick
  • Fixed by: slotted nut M12 x 0.75 and spring washer
  • Hole Ø 12.2+0.1 mm
  • Flat tab can be bent up to 90° once
Technical specifications
Connection flat plug connection
Version socket
Rated Voltage 1000 V
Rated current 24 A
Touch safe Yes
diameter 4 mm
Installation diameter 12.2 mm
Colour green
contact surface nickel-plated
Length 34 mm
Rated category CAT III
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free No
Substance description Lead
