KURZ 7450 / 7.5-2 IG AU / SW | SCHÜTZINGER

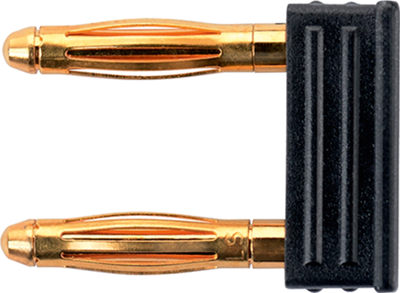

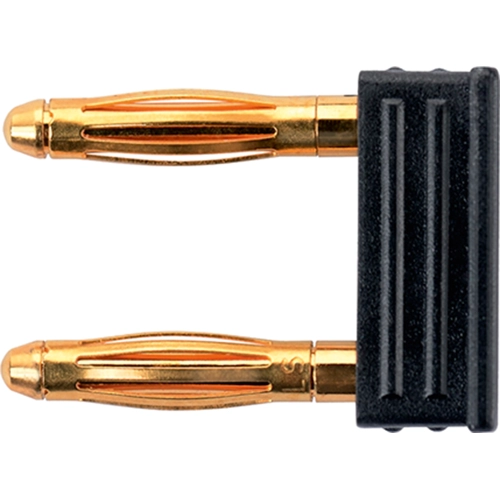

Short-circuit plug, pitch 7.5 mm, 70 V, 12 A, gold-plated, black, KURZ 7450 / 7.5-2 IG AU / SW
Order No.: 40F4246
EAN: 4099889686753
MPN:
KURZ 7450 / 7.5-2 IG AU / SW
99015038
Unit Price (€ / pc.)
4.7600 € *
Available: 0 pcs.
Leadtime: On Request **
Total Price:
4.76 € *
Price list
Quantity
Price per unit*
1 pcs.
4.7600 €
5 pcs.
4.4863 €
10 pcs.
4.2245 €
25 pcs.
3.9627 €
50 pcs.
3.7009 €
*incl. VAT plus shipping costs
**Subject to prior sale
Short-circuit plugs, 2.0 mm, type Schützinger KURZ 7450/7.5-2 IG.
Insulated, molded in housing; Contact material: nickel-plated or gold-plated brass. Housing: PA 6.6. Pin pitch: 7.5 mm. Color: black. Rated voltage: 30 VAC/70 VDC. Rated current: 12 A. Contact resistance: 5.0 mohm (nickel-plated)/3.0 mohm (gold-plated). Operating temperatures: –40 to +90 °C.
Technical attributes (type, contact finish): KURZ 7450/7.5-2 IG Au/SW, gold-plated
Technical specifications
| Colour | black | |
| contact surface | gold-plated | |
| Rated voltage | 70 V | |
| Rated current | 12 A | |
| Grid | 7.5 mm |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 85366990 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | No |
| Substance description | Lead |
