AL 7622 NI / 2.5 / 200 / SW | SCHÜTZINGER

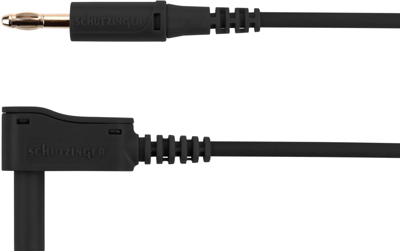

Measuring lead with (4 mm plug, spring-loaded, straight) to (4 mm plug, spring-loaded, angled), 2 m, black, PVC, 2.5 mm², AL 7622 NI / 2.5 / 200 / SW
Unit Price (€ / pc.)
15.5176 € *
Available: 0 pcs.
Leadtime: 3 Weeks **
Total Price:
15.52 € *
Price list
Quantity
Price per unit*
1 pcs.
15.5176 €
5 pcs.
14.7203 €
10 pcs.
13.8278 €
25 pcs.
13.0305 €
50 pcs.
12.2332 €
*incl. VAT plus shipping costs
**Subject to prior sale
Safety measuring lead
Features
- 1 safety lamella-basket plug and 1 safety lamella-basket angle plug Ø 4 mm, assembled on highly flexible double-insulated PVC cable 2.5 mm²
- cable = 2.5 mm²
- contact parts = nickel-plated
- sleeves = PA 6.6 (Polyamid)
Technical specifications
| Connection (1) | 4 mm plug, spring-loaded, straight | |
| Connection (2) | 4 mm plug, spring-loaded, angled | |
| Rated Voltage | 30 VAC/60 VDC | |
| Rated current | 32 A | |
| Touch safe | Yes | |
| Colour | black | |
| Cable length | 2 m | |
| contact surface | nickel-plated | |
| Cable cross-section | 2.5 mm² | |
| Material | PVC | |
| Stackable | No |
Download
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | No |
| Substance description | Lead |
