MFK 15 / 1 / 200 / BL | SCHÜTZINGER

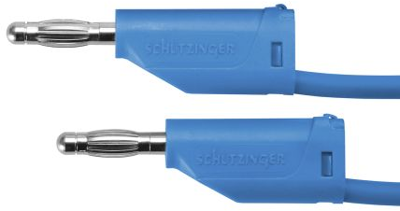

Measuring lead with (4 mm plug, spring-loaded, straight) to (4 mm plug, spring-loaded, straight), 2 m, blue, PVC, 1.0 mm², CAT II, MFK 15 / 1 / 200 / BL
Unit Price (€ / pc.)
7.7945 € *
Available: 0 pcs.
Leadtime: On Request **
Total Price:
7.79 € *
Price list
Quantity
Price per unit*
1 pcs.
7.7945 €
20 pcs.
7.2233 €
60 pcs.
6.7830 €
100 pcs.
6.3546 €
200 pcs.
5.9143 €
*incl. VAT plus shipping costs
**Subject to prior sale
Measuring lead
Features
- 2 lamella-basket plugs with inline socket, assembled on highly flexible double-insulated PVC cable 1 mm²
- cable - 1 mm² PVC double-insulated
- contact parts - nickel-plated
- sleeves - PP(Moplen)
Technical specifications
| Connection (1) | 4 mm plug, spring-loaded, straight | |
| Connection (2) | 4 mm plug, spring-loaded, straight | |
| Rated Voltage | 30 VAC/60 VDC | |
| Rated current | 16 A | |
| Touch safe | No | |
| Colour | blue | |
| Cable length | 2 m | |
| contact surface | nickel-plated | |
| Cable cross-section | 1.0 mm² | |
| Material | PVC | |
| Rated category | CAT II | |
| Stackable | Yes |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 85444290 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | No |
| Substance description | Lead |
