MSWFK A341 / 1 / 200 / RT | SCHÜTZINGER

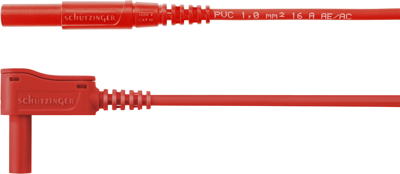

Measuring lead with (4 mm plug, spring-loaded, straight) to (4 mm plug, spring-loaded, angled), 2 m, red, PVC, 1.0 mm², CAT III, MSWFK A341 / 1 / 200 / RT
Unit Price (€ / pc.)
14.4585 € *
Available: 0 pcs.
Leadtime: 1 Week **
Total Price:
14.46 € *
Price list
Quantity
Price per unit*
1 pcs.
14.4585 €
10 pcs.
13.2090 €
50 pcs.
12.3879 €
100 pcs.
11.7215 €
250 pcs.
11.2336 €
*incl. VAT plus shipping costs
**Subject to prior sale
Test and connecting leads with 4.0 mm safety plugs, type Schützinger MSWFK A341/.
To IEC 61010, one end with straight 4.0 mm safety plug, other end with angled 4.0 mm safety plug, ultra flexible cable with double insulation; Cable cross-section: 1.0 mm². Cable material: PVC. Grip material: PA 6.6. Contact material: nickel-plated brass. Rated voltage: 1000 V, CAT III. Rated current: 16 A. Operating temperatures: –10 to +90 °C.
Technical attributes (type, color): MSWFK A341/1/200/RT, 2.0 m, red
Technical specifications
| Connection (1) | 4 mm plug, spring-loaded, straight | |
| Connection (2) | 4 mm plug, spring-loaded, angled | |
| Rated Voltage | 1000 V | |
| Rated current | 16 A | |
| Touch safe | Yes | |
| Colour | red | |
| Cable length | 2 m | |
| contact surface | nickel-plated | |
| Cable cross-section | 1.0 mm² | |
| Material | PVC | |
| Rated category | CAT III | |
| Stackable | No |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 85444290 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | No |
| Substance description | Lead |
