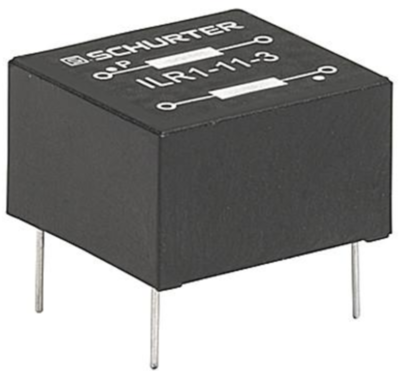

Pulse transformer, ILR-10-0001, SCHURTER
Cost optimized pulse transformer for THT mounting, short rise time.
Features
- High insulation rating (>2.2 kVAC) between the primary and the secondary windings
- Small coupling capacitances between primary and secondary windings limit transient feedback from the power supply side to the control electronics
- Cost optimized design
- The defined partial discharge voltage guarantees an effecively unlimited serviceable live
Application
- Galvanic separation of drive- and power-circuit
- Mainly used in ignition circuits with Thyristors, Triacs, power transistors and IGBT's
- DC/DC Converters
- Line coupling transformers in high speed data transmission
Technical specifications
| Bauform | THT | |
| Breite | 18.5 mm | |
| Gleichstromwiderstand | 0.3 Ω | |
| Höhe | 11.5 mm | |
| Induktivität | 0.5 mH | |
| Länge | 17.5 mm | |
| max. Temperatur | 70 °C | |
| min. Temperatur | -25 °C | |
| Windungsverhältnis | 1:1:1 |
Download
Logistics
| Ursprungsland | LK |
| Zolltarifnummer | 85043180 |
| MSL | MSL 1 |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | Yes |
