4404.0082 | SCHURTER
Thermal circuit breaker, 1 pole, T characteristic, 5 A, 48 V (DC), 240 V (AC), faston plug 6.3 x 0.8 mm, threaded fastening, IP40, 4404.0082
Unit Price (€ / pc.)
1.7969 € *
Available: 0 pcs.
Leadtime: 20 Weeks **

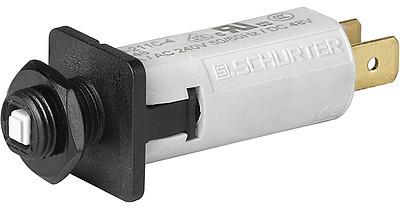

Thermal circuit breaker, 4404.0082, SCHURTER
The 4404.0082 is a thermal-magnetic circuit breaker for equipment and it is a threaded neck type with one pole.
Features
- Reset type
- Cycling trip-free release
- Different mounting possibilities
- High dielectric strength
Applications
- Power tools
- Uninterruptible power supply
- Power supplies
- Household appliances
Technical specifications
| Connection | faston plug 6.3 x 0.8 mm | |
| Tripping characteristics | T | |
| Type of mounting | threaded fastening | |
| Actuator | push button | |
| Rated voltage (AC) | 240 V | |
| Rated voltage (DC) | 48 V | |
| Rated current | 5 A | |
| Pin number | 1 pole | |
| Degree of protection (IP) | IP40 |
Download
Logistics
| Country of origin | IN |
| Customs tariff number | 85362010 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
