4410.0355 | SCHURTER
Circuit breaker, 1 pole, T characteristic, 5.5 A, 28 V (DC), 240 V (AC), faston plug 6.3 x 0.8 mm, threaded fastening, IP40, 4410.0355
Unit Price (€ / pc.)
12.4117 € *
Available: 0 pcs.
Leadtime: 7 Weeks **

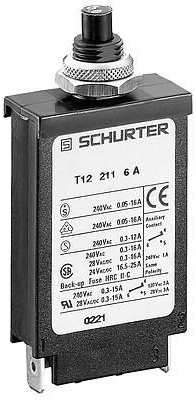

Thermal circuit breaker, 4410.0355, SCHURTER
The 4410.0355 is a thermal-magnetic circuit breaker for equipment and it is a threaded neck type with a reset button.
Features
- Compact design
- Positively trip-free release
- Different mounting possibilities
- High dielectric strength
Applications
- Power tools
- Household equipment
- Power supplies and chargers
- Industrial appliances
Technical specifications
| Anschluss | Flachstecker 6,3 x 0,8 mm | |
| Auslösecharakteristik | T | |
| Befestigungsart | Gewindebefestigung | |
| Betätiger | Druckknopf | |
| Nennspannung (AC) | 240 V | |
| Nennspannung (DC) | 28 V | |
| Nennstrom | 5.5 A | |
| Polzahl | 1-polig | |
| Schutzart (IP) | IP40 |
Download
Logistics
| Ursprungsland | CZ |
| Zolltarifnummer | 85362010 |
| MSL | MSL 1 |
| Originalverpackung | Karton mit 20 Stück |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | Yes |
