4411.0167 | SCHURTER
Circuit breaker, 1 pole, T characteristic, 7 A, 28 V (DC), 240 V (AC), faston plug 6.3 x 0.8 mm, snap-in, IP40, 4411.0167
Unit Price (€ / pc.)
12.138 € *
Available: 0 pcs.
Leadtime: 7 Weeks **

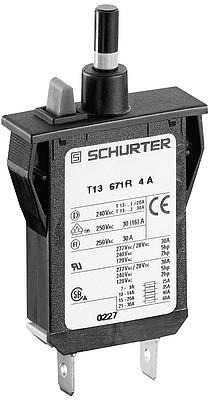

Device circuit breaker, 4411.0167, SCHURTER
The 4411.0167 is a thermal circuit breaker for equipment (CBE) and is particularly suitable for protection of motors and transformers against current overload.
Features
- Wide current range
- High breaking capacity
- Compact design
- Positively trip-free release
- Different mounting possibilities
- High dielectric strength
Applications
- Power supplies
- Uninterruptible power supply
- Power tools
- Household appliances
Technical specifications
| Anschluss | Flachstecker 6,3 x 0,8 mm | |
| Auslösecharakteristik | T | |
| Befestigungsart | Snap-in | |
| Betätiger | Druckknopf | |
| Nennspannung (AC) | 240 V | |
| Nennspannung (DC) | 28 V | |
| Nennstrom | 7 A | |
| Polzahl | 1-polig | |
| Schutzart (IP) | IP40 |
Download
Logistics
| Ursprungsland | CZ |
| Zolltarifnummer | 85362010 |
| MSL | MSL 1 |
| Originalverpackung | Karton mit 20 Stück |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | Yes |
