3-101-685 | SCHURTER

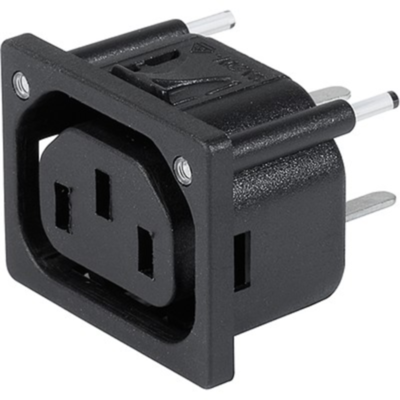

Built-in appliance socket F, 3 pole, snap-in, PCB connection, black, 3-101-685
Unit Price (€ / pc.)
1.9992 € *
Available: 0 pcs.
Leadtime: 19 Weeks **
Socket, 3-101-685, SCHURTER

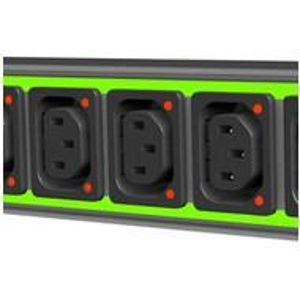

IEC Appliance outlet F, Integrated Light Pipes, PCB terminals, Color coding.
Features
- Panel mountable
- Pre-assembled light pipes
- For PCB mounting
- Housing material: Thermoplastic, UL 94V-0
- Protection class: 1
Technical specifications
| Connection | Leiterplattenanschluss | |
| Version | Buchse | |
| Design | gerade | |
| Colour | schwarz | |
| IEC designation | F | |
| Assembly | Snap-in | |
| Rated voltage IEC | 250 V | |
| Rated voltage UL/CSA | 250 V | |
| Rated current IEC | 10 A | |
| Rated current UL/CSA | 15 A | |
| Line filter present | No | |
| Switch illuminated | No | |
| Power switch available | No | |
| Panel thickness | 2 mm | |
| Pin number | 3-polig | |
| Fuse holder present | No | |
| Pin temperature | 70 °C | |
| Type of locking | Ja |
Download
Logistics
| Country of origin | CH |
| Customs tariff number | 85366990 |
| Original Packaging | Karton mit 50 Stück |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
