3-102-260 | SCHURTER

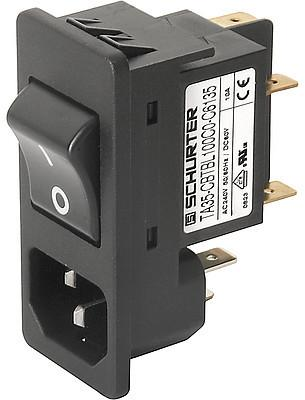

Combination element C14, 2 pole, Snap-in mounting, plug-in connection, black, 3-102-260
Order No.: 59P0194
EAN: 4099891582319
MPN:
3-102-260
6135-CBTBL100C0-000-C6135-4413-000
Series: 6135
Unit Price (€ / pc.)
17.5406 € *
Available: 0 pcs.
Leadtime: 10 Weeks **
IEC plug C14, 3-102-260, SCHURTER
Features
- Unwired
- Snap-in version front side
- Protection class I
- Circuit breaker type TA35
Applications
- Suitable for use in equipment
- Suitable for appliances with protection class I
Technical specifications
| Anschluss | Steckanschluss | |
| Ausführung | Kombielement | |
| Bauform | gerade | |
| Farbe Netzschalter | schwarz | |
| Farbe | schwarz | |
| IEC-Bezeichnung | C14 | |
| Montage | Schnappmontage | |
| Nennspannung IEC | 250 V | |
| Nennspannung UL/CSA | 250 V | |
| Nennstrom IEC | 10 A | |
| Nennstrom UL/CSA | 15 A | |
| Netzfilter vorhanden | No | |
| Netzschalter beleuchtet | No | |
| Netzschalter vorhanden | Yes | |
| Plattenstärke | 2 mm | |
| Polzahl Netzschalter | 2-polig | |
| Polzahl | 2-polig | |
| Sicherungshalter vorhanden | No | |
| Stifttemperatur | 70 °C | |
| Verriegelung | Nein |
Download
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | Yes |
