3-103-059 | SCHURTER

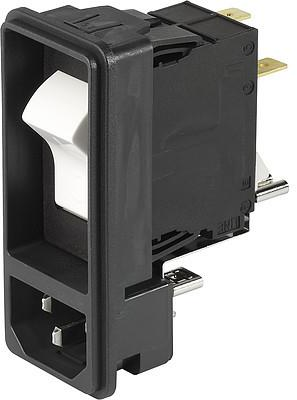

Combination element C14, Snap-in mounting, plug-in connection, black, 3-103-059
Unit Price (€ / pc.)
28.2387 € *
Available: 0 pcs.
Leadtime: 10 Weeks **
Total Price:
28.24 € *
Price list
Quantity
Price per unit*
1 pcs.
28.2387 €
10 pcs.
25.9777 €
25 pcs.
23.9071 €
50 pcs.
21.7532 €
*incl. VAT plus shipping costs
**Subject to prior sale
IEC Combination element C14, 3-103-059, SCHURTER
Features
- Quick connect terminals 6.3 x 0.8 mm
- Circuit breaker type TA45
Applications
- Suitable for use in equipment
- Suitable for appliances with protection class I or II
Technical specifications
| Connection | Steckanschluss | |
| Version | Kombielement | |
| Design | gerade | |
| Swich colour | weiß | |
| Colour | schwarz | |
| IEC designation | C14 | |
| Assembly | Schnappmontage | |
| Rated voltage IEC | 250 V | |
| Rated voltage UL/CSA | 250 V | |
| Rated current IEC | 10 A | |
| Rated current UL/CSA | 15 A | |
| Line filter present | No | |
| Switch illuminated | No | |
| Power switch available | Yes | |
| Panel thickness | 2 mm | |
| Number of poles switch | 2-polig | |
| Fuse holder present | No | |
| Pin temperature | 70 °C | |
| Type of locking | Ja |
Download
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
