3-103-441 | SCHURTER

Combination element C14, Snap-in mounting, plug-in connection, black, 3-103-441

Order No.: 59P0341
EAN: 4099891583774
MPN:
3-103-441
DF11-ABDWM100C0-000-331-200
Series: DF11
SCHURTER

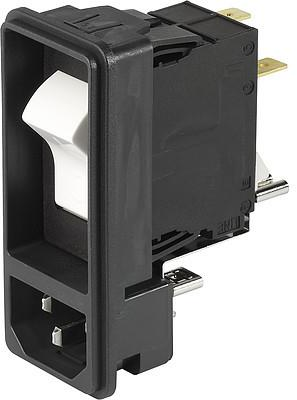

3-103-441 SCHURTER Device Connectors Image 1

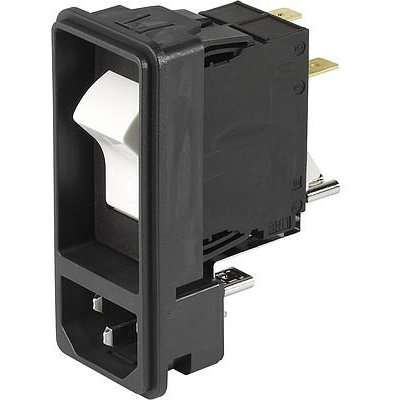

3-103-441 SCHURTER Device Connectors Image 2
Image may differ
Unit Price (€ / pc.)
26.0491 € *
Available: 0 pcs.
Leadtime: 11 Weeks **
Total Price:
26.05 € *
*incl. VAT plus shipping costs
**Subject to prior sale
40 pcs.
26.0491 €

IEC Combination element C14, 3-103-441, SCHURTER

Features

  • Quick connect terminals 6.3 x 0.8 mm
  • Circuit breaker type TA45

Applications

  • Suitable for use in equipment
  • Suitable for appliances with protection class I or II
Technical specifications
Connection plug-in connection
Version Combination element
Design straight
Swich colour white
Colour black
IEC designation C14
Assembly Snap-in mounting
Rated voltage IEC 250 V
Rated voltage UL/CSA 250 V
Rated current IEC 10 A
Rated current UL/CSA 15 A
Line filter present No
Switch illuminated No
Power switch available Yes
Panel thickness 1.5 mm
Number of poles switch 2 pole
Fuse holder present No
Pin temperature 70 °C
Type of locking No
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free Yes
