3-110-015 | SCHURTER

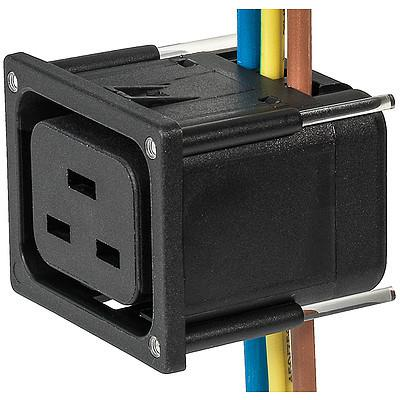

Built-in appliance socket J, 3 pole, snap-in, IDC connection, 2.5 mm², black, 3-110-015
This item is no longer available.
As an alternative, we recommend the following item:
Built-in appliance socket J, 3 pole, snap-in, IDC connection, 2.5 mm², black, 4710.6014
Order No.: 59P6696
Manufacturer: SCHURTER
per pc. 2.1896 € *
Plug, 3-110-015, SCHURTER
IEC Appliance outlet J, Snap-in mounting, Front side, IDC terminals, integrated light pipes.
Features
- Live contact as PCB-terminals
- Protection cover can be used as wire press
- Protection class: 1
- Housing material: Thermoplastic, black, UL 94V-0
- Allows wiring of multiple terminals at once
Technical specifications
| Connection | Schneidklemmanschluss | |
| Version | Buchse | |
| Colour | schwarz | |
| IEC designation | J | |
| Cable cross-section | 2,5 mm² | |
| Assembly | Snap-in | |
| Rated voltage IEC | 250 V | |
| Rated voltage UL/CSA | 250 V | |
| Rated current IEC | 16 A | |
| Rated current UL/CSA | 20 A | |
| Switch illuminated | No | |
| Power switch available | No | |
| Panel thickness | 1.5 mm | |
| Pin number | 3-polig | |
| Fuse holder present | No | |
| Pin temperature | 70 °C | |
| Type of locking | Nein |
Download
Logistics
| Country of origin | IN |
| Customs tariff number | 85366990 |
| Original Packaging | Karton mit 50 Stück |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
