3-130-512 | SCHURTER
Combination element C14, screw mounting, plug-in connector 6.3 x 0.8, black, 3-130-512
Order No.: 41F1057
EAN: 4099891579647
MPN:
3-130-512
DG11-CBDWF050C0-000-C6135-111-880-00
Series: DG11
Unit Price (€ / pc.)
31.6421 € *
Available: 0 pcs.
Leadtime: 11 Weeks **
Total Price:
31.64 € *
Price list
Quantity
Price per unit*
1 pcs.
31.6421 €
5 pcs.
29.4287 €
10 pcs.
27.3581 €
25 pcs.
25.1685 €
*incl. VAT plus shipping costs
**Subject to prior sale

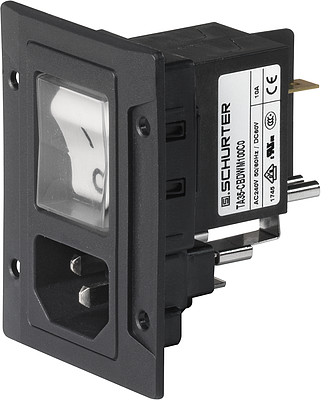

IEC Appliance inlet, 3-130-512, SCHURTER
IEC Appliance inlet with circuit breaker.
Features
- Pre-wired coupling
- V-Lock notch standard
- Recessed rocker prevents accidental manipulation
- Compatible with V-Lock cord retention
Technical specifications
| Connection | plug-in connector 6.3 x 0.8 | |
| Version | plug | |
| Design | straight | |
| Swich colour | white | |
| Colour | black | |
| IEC designation | C14 | |
| Assembly | screw mounting | |
| Rated voltage IEC | 250 V | |
| Rated voltage UL/CSA | 250 V | |
| Rated current IEC | 10 A | |
| Rated current UL/CSA | 15 A | |
| Line filter present | No | |
| Switch illuminated | No | |
| Power switch available | Yes | |
| Number of poles switch | 2 pole | |
| Fuse holder present | No | |
| Pin temperature | 70 °C | |
| Type of locking | No |
Download
Logistics
| Country of origin | CZ |
| Customs tariff number | 85366990 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
