3-135-541 | SCHURTER
4-fold socket F, snap-in, plug-in connection, black, 3-135-541
Unit Price (€ / pc.)
7.9254 € *
Available: 60 pcs.
Leadtime: 19 Weeks **
Total Price:
7.93 € *
Price list
Quantity
Price per unit*
1 pcs.
7.9254 €
10 pcs.
6.9734 €
60 pcs.
6.3903 €
120 pcs.
6.1523 €
480 pcs.
5.7834 €
*incl. VAT plus shipping costs
**Subject to prior sale
Distribution unit, 3-135-541, Schurter

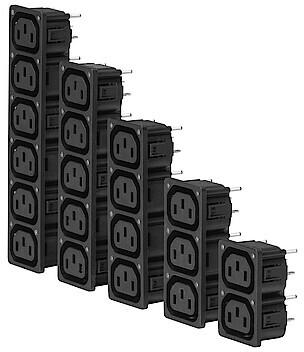

Strip block for snap-in mounting with 4 IEC appliance outlets F
Features
- Snap-in, front side
- Pre-assembled light pipe for status indication
- Compact solution for intelligent PDU applications
- Cord retention for cordsets with V-lock/Twylock/P-lock
Technical specifications
| Anschluss | Steckanschluss | |
| Ausführung | 4-fach Buchse | |
| Bauform | gerade | |
| Farbe | schwarz | |
| IEC-Bezeichnung | F | |
| Montage | Snap-in | |
| Nennspannung IEC | 250 V | |
| Nennspannung UL/CSA | 250 V | |
| Nennstrom IEC | 10 A | |
| Nennstrom UL/CSA | 15 A | |
| Netzfilter vorhanden | No | |
| Netzschalter beleuchtet | No | |
| Netzschalter vorhanden | No | |
| Plattenstärke | 1.5 mm | |
| Sicherungshalter vorhanden | No | |
| Stifttemperatur | 70 °C | |
| Verriegelung | Nein |
Download
Logistics
| Ursprungsland | IN |
| Zolltarifnummer | 85366990 |
| Originalverpackung | Karton mit 60 Stück |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | Yes |
