3-145-164 | SCHURTER

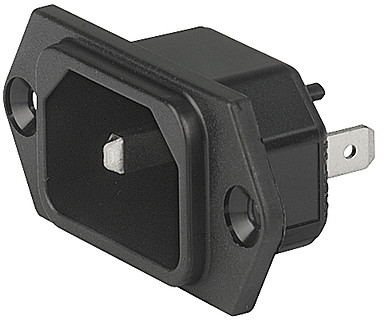

Panel plug C18, 2 pole, screw mounting, plug-in connector 4.8 x 0.8, black, 3-145-164
Unit Price (€ / pc.)
1.4518 € *
Available: 95 pcs.
Leadtime: 7 Weeks **
Total Price:
1.45 € *
Price list
Quantity
Price per unit*
1 pcs.
1.4518 €
10 pcs.
1.3328 €
50 pcs.
1.2138 €
100 pcs.
1.0948 €
*incl. VAT plus shipping costs
**Subject to prior sale
Panel plug C18, 3-145-164, SCHURTER
IEC Appliance inlet C18, Screw-on mounting, Front, Quick-connect terminal suitable for appliances with protection class II acc. to IEC 61140.
Technical specifications
| Connection | plug-in connector 4.8 x 0.8 | |
| Version | plug | |
| Design | straight | |
| Colour | black | |
| IEC designation | C18 | |
| Assembly | screw mounting | |
| Rated voltage IEC | 250 V | |
| Rated voltage UL/CSA | 250 V | |
| Rated current IEC | 10 A | |
| Rated current UL/CSA | 15 A | |
| Line filter present | No | |
| Switch illuminated | No | |
| Power switch available | No | |
| Pin number | 2 pole | |
| Fuse holder present | No | |
| Pin temperature | 70 °C | |
| Type of locking | No |
Download
Logistics
| Country of origin | CH |
| Customs tariff number | 85366990 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| Sustainable | Yes |
