3-152-193 | SCHURTER
Appliance inlet C19, 3 pole, cable assembly, screw connection, 1.0 mm², gray, 3-152-193
Unit Price (€ / pc.)
9.5795 € *
Available: 0 pcs.
Leadtime: 13 Weeks **
Total Price:
9.58 € *
Price list
Quantity
Price per unit*
1 pcs.
9.5795 €
10 pcs.
8.8655 €
50 pcs.
8.3657 €
100 pcs.
7.8897 €
250 pcs.
7.5208 €
*incl. VAT plus shipping costs
**Subject to prior sale

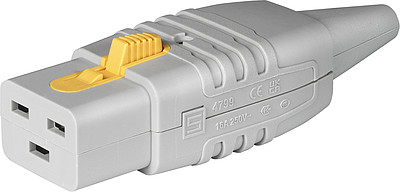

Cable connector, 3-152-193, SCHURTER
The 3-152-193 rewireable cord connector with V-Lock interlocking system prevents unintentional removal of power.
Features
- Screw-on mounting
- Simple cable assembly
- Reusable
- Halogen free
Technical specifications
| Anschluss | Schraubanschluss | |
| Ausführung | Buchse | |
| Bauform | gerade | |
| Farbe | grau | |
| IEC-Bezeichnung | C19 | |
| Kabeldurchmesser | 8,5 mm | |
| Leiterquerschnitt | 1,0 mm² | |
| Montage | Kabelmontage | |
| Nennspannung IEC | 250 V | |
| Nennspannung UL/CSA | 250 V | |
| Nennstrom IEC | 16 A | |
| Nennstrom UL/CSA | 20 A | |
| Netzfilter vorhanden | No | |
| Netzschalter vorhanden | No | |
| Polzahl | 3-polig | |
| Sicherungshalter vorhanden | No | |
| Stifttemperatur | 70 °C | |
| Verriegelung | Ja |
Download
Logistics
| Ursprungsland | IN |
| Zolltarifnummer | 85366990 |
| Originalverpackung | Karton mit 50 Stück |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | Yes |
