4300.0401 | SCHURTER

Device connection plug E, 3 pole, cable assembly, screw connection, 1.0 mm², black, 4300.0401

Order No.: 41F105
EAN: 4099889861747
MPN:
4300.0401
Series: P685

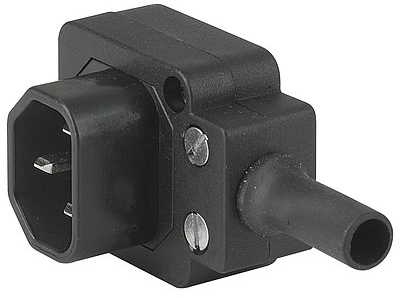

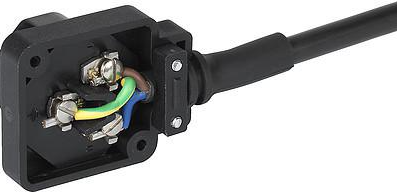

4300.0401 SCHURTER Device Connectors Image 1
4300.0401 SCHURTER Device Connectors Image 2
4300.0401 SCHURTER Device Connectors Image 3
Image may differ
Unit Price (€ / pc.)
9.7580 € *
Available: 28 pcs.
Next delivery: 20 pcs. on 2025-04-25
Leadtime: 29 Weeks **
Total Price:
9.76 € *
Price list
Quantity
Price per unit*
1 pcs.
9.7580 €
10 pcs.
8.9845 €
50 pcs.
8.1753 €
100 pcs.
7.3542 €
*incl. VAT plus shipping costs
**Subject to prior sale

Plug, 4300.0401, SCHURTER

IEC Plug E, Cord connector (Rewireable), Angled.

Features

  • 1 Function
  • Housing material: Thermoplastic, UL 94V-0
  • Protection class: 1
Technical specifications
Anschluss Schraubanschluss
Ausführung Stecker
Bauform abgewinkelt
Farbe schwarz
IEC-Bezeichnung E
Kabeldurchmesser 8,5 mm
Leiterquerschnitt 1,0 mm²
Montage Kabelmontage
Nennspannung IEC 250 V
Nennspannung UL/CSA 250 V
Nennstrom IEC 10 A
Nennstrom UL/CSA 10 A
Netzfilter vorhanden No
Netzschalter beleuchtet No
Netzschalter vorhanden No
Polzahl 3-polig
Sicherungshalter vorhanden No
Stifttemperatur 70 °C
Logistics
Ursprungsland GB
Zolltarifnummer 85366990
Originalverpackung Karton mit 20 Stück
Compliance
RoHS konform Yes
Stand der RoHS-Richtlinie 3/31/15
SVHC frei Yes
