4304.6028 | SCHURTER

Combination element C14, 3 pole, snap-in, solder connection, black, 4304.6028

Order No.: 41F1514
EAN: 4099889862256
MPN:
4304.6028
1064-X-BB21-A-3004
Series: 1064
SCHURTER

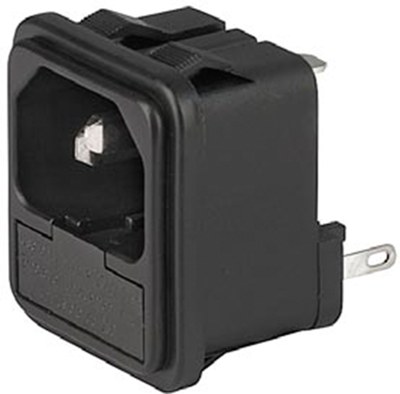

4304.6028 SCHURTER Device Connectors Image 1
4304.6028 SCHURTER Device Connectors Image 2
Image may differ
Unit Price (€ / pc.)
4.9861 € *
Available: 47 pcs.
Leadtime: 13 Weeks **
Total Price:
4.99 € *
Price list
Quantity
Price per unit*
1 pcs.
4.9861 €
10 pcs.
4.4863 €
50 pcs.
4.0817 €
100 pcs.
3.6771 €
*incl. VAT plus shipping costs
**Subject to prior sale

Plug, 4304.6028, SCHURTER

IEC Appliance inlet C14 with fuseholder 2-pole.

Features

  • Panel mountable
  • Fuseholder for fuselinks
  • Housing material: PA6, UL 94V-0
  • Protection class: 1
Technical specifications
Connection solder connection
Version plug
Design straight
Colour black
IEC designation C14
Assembly snap-in
Rated voltage IEC 250 V
Rated voltage UL/CSA 250 V
Rated current IEC 10 A
Rated current UL/CSA 10 A
Line filter present No
Switch illuminated No
Power switch available No
Panel thickness 2.5 mm
Number of poles fuse holder 2 pole
Pin number 3 pole
Fuse holder present Yes
Pin temperature 70 °C
Type of locking No
Logistics
Country of origin DE
Customs tariff number 85366990
Original Packaging Carton with 50 pieces
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free Yes
