4304.6056 | SCHURTER

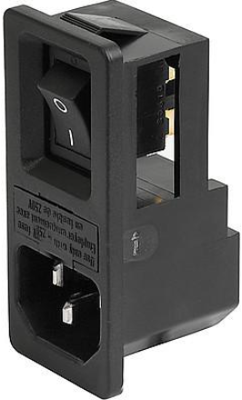

Combination element C14 or C18, 3 pole/2 pole, snap-in, solder connection, black, 4304.6056
Unit Price (€ / pc.)
9.9365 € *
Available: 0 pcs.
Leadtime: 11 Weeks **
Total Price:
9.94 € *
Price list
Quantity
Price per unit*
1 pcs.
9.9365 €
10 pcs.
9.0440 €
50 pcs.
8.1396 €
100 pcs.
7.3304 €
*incl. VAT plus shipping costs
**Subject to prior sale
Plug, 4304.6056, SCHURTER
IEC Appliance inlet C14 with line switch with fuseholder 1-pole.
Features
- Fuseholder for fuse-links
- Housing material: PA6, UL 94V-0
- Protection class: 2
Technical specifications
| Connection | solder connection | |
| Version | plug | |
| Design | straight | |
| Swich colour | black | |
| Colour | black | |
| IEC designation | C14 or C18 | |
| Assembly | snap-in | |
| Rated voltage IEC | 250 V | |
| Rated voltage UL/CSA | 250 V | |
| Rated current IEC | 10 A | |
| Rated current UL/CSA | 10 A | |
| Line filter present | No | |
| Switch illuminated | No | |
| Power switch available | Yes | |
| Panel thickness | 2 mm | |
| Number of poles switch | 2 pole | |
| Number of poles fuse holder | 1 pole | |
| Pin number | 3 pole/2 pole | |
| Fuse holder present | Yes | |
| Pin temperature | 70 °C | |
| Type of locking | No |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 85366990 |
| MSL | MSL 1 |
| Original Packaging | Carton with 50 pieces |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
