4304.6089 | SCHURTER
Plug C14, 3 pole, screw mounting, plug-in connection, black, 4304.6089
Unit Price (€ / pc.)
7.8183 € *
Available: 0 pcs.
Leadtime: 11 Weeks **

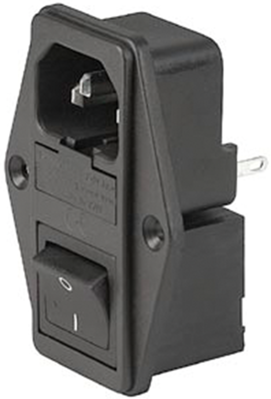

Plug, 4304.6089, SCHURTER
IEC Appliance inlet C14 with line switch 2 pole and Fuseholder.
Features
- Fuseholder for fuse-links
- Housing material: PA6, UL 94V-0
- Protection class: 1
Technical specifications
| Connection | plug-in connection | |
| Version | plug | |
| Design | straight | |
| Swich colour | green | |
| Colour | black | |
| IEC designation | C14 | |
| Assembly | screw mounting | |
| Rated voltage IEC | 250 V | |
| Rated voltage UL/CSA | 250 V | |
| Rated current IEC | 10 A | |
| Rated current UL/CSA | 10 A | |
| Line filter present | No | |
| Switch illuminated | Yes | |
| Power switch available | Yes | |
| Number of poles switch | 2 pole | |
| Number of poles fuse holder | 2 pole | |
| Pin number | 3 pole | |
| Fuse holder present | Yes | |
| Pin temperature | 70 °C | |
| Type of locking | No |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 85366990 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
