4312.0011 | SCHURTER

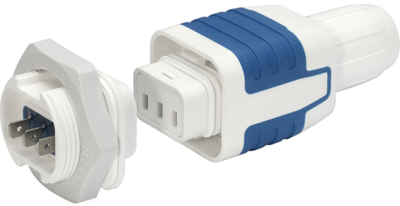

Device plug and socket S15, 3 pole, cable assembly, plug-in connection, 1.5 mm², white, 4312.0011
Unit Price (€ / pc.)
33.3081 € *
Available: 0 pcs.
Leadtime: 7 Weeks **
Total Price:
33.31 € *
Price list
Quantity
Price per unit*
1 pcs.
33.3081 €
5 pcs.
30.9757 €
10 pcs.
28.8099 €
25 pcs.
26.5013 €
*incl. VAT plus shipping costs
**Subject to prior sale
Plug, 4312.0011, SCHURTER
IEC Appliance Inlet with protection degree IP67/IP69K, Screw-on mounting front side, Quick-connect terminals.
Features
- Panel mountable
- Suitable for equipments in harsh environment
- Housing material: Thermoplastic, UL 94V-0
- Protection class: 1
Technical specifications
| Anschluss | Steckanschluss | |
| Ausführung | Stecker/Buchse | |
| Bauform | gerade | |
| Farbe | weiß | |
| IEC-Bezeichnung | S15 | |
| Kabeldurchmesser | 10 mm | |
| Leiterquerschnitt | 1,5 mm² | |
| Montage | Kabelmontage | |
| Nennspannung IEC | 250 V | |
| Nennspannung UL/CSA | 250 V | |
| Nennstrom IEC | 10 A | |
| Nennstrom UL/CSA | 15 A | |
| Netzfilter vorhanden | No | |
| Netzschalter beleuchtet | No | |
| Netzschalter vorhanden | No | |
| Polzahl | 3-polig | |
| Sicherungshalter vorhanden | No | |
| Stifttemperatur | 120 °C | |
| Verriegelung | Nein |
Download
Logistics
| Ursprungsland | CH |
| Zolltarifnummer | 85366990 |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | Yes |
