4752.3400 | SCHURTER

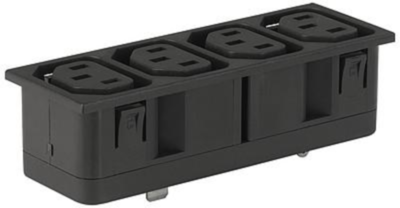

Distribution strip, 4-fold F, snap-in, solder connection, black, 4752.3400
Unit Price (€ / pc.)
10.3173 € *
Available: 0 pcs.
Leadtime: 10 Weeks **
Total Price:
10.32 € *
Price list
Quantity
Price per unit*
1 pcs.
10.3173 €
10 pcs.
9.3891 €
50 pcs.
8.4490 €
100 pcs.
7.6041 €
*incl. VAT plus shipping costs
**Subject to prior sale
Plug, 4752.3400, SCHURTER
Strip block for Snap-in mounting with 4 IEC Appliance outlets F.
Features
- Panel mountable
- 1 Function
- Housing material: Thermoplastic, UL 94V-0
- Protection class: 1
Technical specifications
| Connection | solder connection | |
| Version | distribution strip, 4-fold | |
| Design | straight | |
| Colour | black | |
| IEC designation | F | |
| Assembly | snap-in | |
| Rated voltage IEC | 250 V | |
| Rated voltage UL/CSA | 250 V | |
| Rated current IEC | 10 A | |
| Rated current UL/CSA | 15 A | |
| Line filter present | No | |
| Switch illuminated | No | |
| Power switch available | No | |
| Panel thickness | 1 mm | |
| Fuse holder present | No | |
| Pin temperature | 70 °C | |
| Type of locking | No |
Download
Logistics
| Country of origin | CH |
| Customs tariff number | 85366990 |
| MSL | MSL 1 |
| Original Packaging | Carton with 50 pieces |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
