4788.5100 | SCHURTER

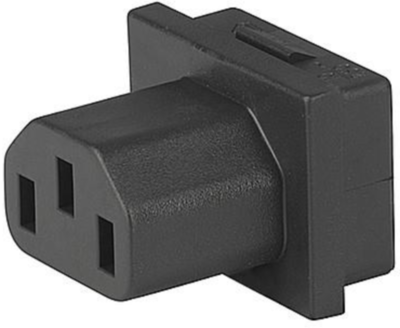

Built-in appliance socket F, 3 pole, snap-in, plug-in connection, black, 4788.5100
As an alternative, we recommend the following item:
Built-in appliance socket F, 3 pole, screw mounting, solder connection, black, 4787.1000
Order No.: 59P6765
Manufacturer: SCHURTER
per pc. 1.4161 € *
*incl. VAT plus shipping costs
Plug, 4788.5100, SCHURTER
IEC Appliance outlet F, Snap-in mounting, Front side, Quick-connect terminals.
Features
- Panel mountable
- 1 Function
- Housing material: Thermoplastic, UL 94V-0
- Protection class: 1
Technical specifications
| Connection | Steckanschluss | |
| Version | Buchse | |
| Design | gerade | |
| Colour | schwarz | |
| IEC designation | F | |
| Assembly | Snap-in | |
| Rated voltage IEC | 250 V | |
| Rated voltage UL/CSA | 250 V | |
| Rated current IEC | 10 A | |
| Rated current UL/CSA | 15 A | |
| Switch illuminated | No | |
| Power switch available | No | |
| Panel thickness | 2 mm | |
| Pin number | 3-polig | |
| Fuse holder present | No | |
| Pin temperature | 70 °C | |
| Type of locking | Nein |
Download
Logistics
| Country of origin | CN |
| Customs tariff number | 85366990 |
| MSL | MSL 1 |
| Original Packaging | Karton mit 100 Stück |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
