4788.7200 | SCHURTER

Built-in appliance socket F, 3 pole, snap-in, solder connection, black, 4788.7200

Order No.: 59P6777
EAN: 4099889867107
MPN:
4788.7200
Series: 4788
SCHURTER

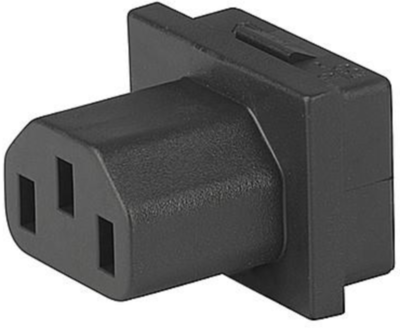

4788.7200 SCHURTER Device Connectors
Image may differ

Not suitable for new designs, LTB: 03.30.2025

Unit Price (€ / pc.)
1.7374 € *
Available: 0 pcs.
Leadtime: 20 Weeks **
Total Price:
1.74 € *
*incl. VAT plus shipping costs
**Subject to prior sale
1 pcs.
1.7374 €

Plug, 4788.7200, SCHURTER

IEC Appliance outlet F, Snap-in mounting, Front side, Solder terminals.

Features

  • Panel mountable
  • 1 Function
  • Housing material: Thermoplastic, UL 94V-0
  • Protection class: 1
Technical specifications
Connection solder connection
Version socket
Design straight
Colour black
IEC designation F
Assembly snap-in
Rated voltage IEC 250 V
Rated voltage UL/CSA 250 V
Rated current IEC 10 A
Rated current UL/CSA 15 A
Switch illuminated No
Power switch available No
Panel thickness 3 mm
Pin number 3 pole
Fuse holder present No
Pin temperature 70 °C
Type of locking No
Logistics
Country of origin CN
Customs tariff number 85366990
MSL MSL 1
Original Packaging Carton with 100 pieces
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free Yes
