6100.4312 | SCHURTER
Plug C14, 3 pole, snap-in, plug-in connection, black, 6100.4312
Unit Price (€ / pc.)
0.9758 € *
Available: 90 pcs.
Leadtime: 6 Weeks **
Total Price:
0.98 € *
Price list
Quantity
Price per unit*
1 pcs.
0.9758 €
10 pcs.
0.9044 €
50 pcs.
0.8211 €
100 pcs.
0.7378 €
*incl. VAT plus shipping costs
**Subject to prior sale

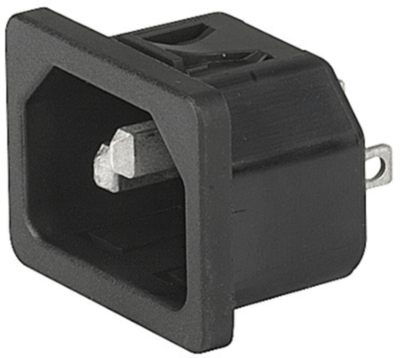

Plug, 6100.4312, SCHURTER
IEC Appliance inlet C14, Snap-in mounting, Front Side, Quick-connect terminals.
Features
- Panel mountable
- 1 Function
- Housing material: Thermoplastic, UL 94V-0
- Protection class: 1
Technical specifications
| Anschluss | Steckanschluss | |
| Ausführung | Stecker | |
| Bauform | gerade | |
| Farbe | schwarz | |
| IEC-Bezeichnung | C14 | |
| Montage | Snap-in | |
| Nennspannung IEC | 250 V | |
| Nennspannung UL/CSA | 250 V | |
| Nennstrom IEC | 10 A | |
| Nennstrom UL/CSA | 15 A | |
| Netzfilter vorhanden | No | |
| Netzschalter beleuchtet | No | |
| Netzschalter vorhanden | No | |
| Plattenstärke | 1.2 mm | |
| Polzahl | 3-polig | |
| Sicherungshalter vorhanden | No | |
| Stifttemperatur | 70 °C | |
| Verriegelung | Nein |
Download
Logistics
| Ursprungsland | CH |
| Zolltarifnummer | 85366990 |
| MSL | MSL 1 |
| Originalverpackung | Karton mit 50 Stück |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | Yes |
