6135.0348.0211 | SCHURTER

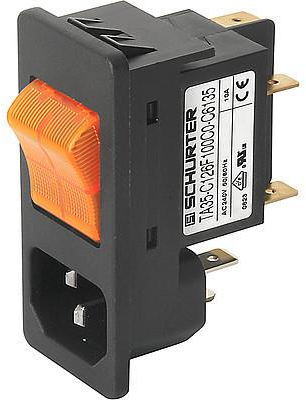

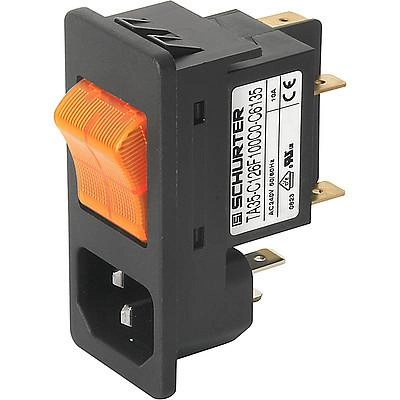

Combination element C14, 2 pole, Snap-in mounting, plug-in connection, black, 6135.0348.0211
Order No.: 59P0140
EAN: 4099891581787
MPN:
6135.0348.0211
6135-C326KJ20C0-000-C6135-4412-000
Series: 6135
Unit Price (€ / pc.)
25.2637 € *
Available: 0 pcs.
Leadtime: 11 Weeks **
IEC plug C14, 6135.0348.0211, SCHURTER
Features
- Unwired
- Snap-in version front side
- Protection class I
- Circuit breaker type TA35
Applications
- Suitable for use in equipment
- Suitable for appliances with protection class I
Technical specifications
| Connection | plug-in connection | |
| Version | Combination element | |
| Design | straight | |
| Swich colour | orange/transparent | |
| Colour | black | |
| IEC designation | C14 | |
| Assembly | Snap-in mounting | |
| Rated voltage IEC | 250 V | |
| Rated voltage UL/CSA | 250 V | |
| Rated current IEC | 10 A | |
| Rated current UL/CSA | 15 A | |
| Line filter present | No | |
| Switch illuminated | Yes | |
| Power switch available | Yes | |
| Panel thickness | 1.5 mm | |
| Number of poles switch | 2 pole | |
| Pin number | 2 pole | |
| Fuse holder present | No | |
| Pin temperature | 70 °C | |
| Type of locking | No |
Download
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
