6136.0178.0310 | SCHURTER

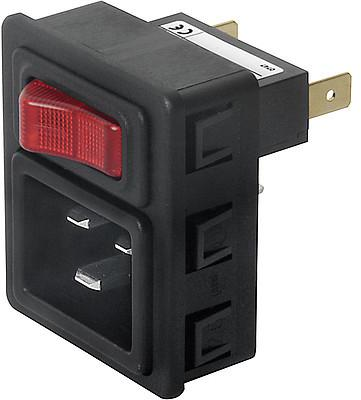

Combination element C20, 2 pole, Snap-in mounting, plug-in connection, black, 6136.0178.0310
Order No.: 59P0202
EAN: 4099891582395
MPN:
6136.0178.0310
6136-C2F3F150C0-000-1113-1000
Series: 6136
Unit Price (€ / pc.)
19.6945 € *
Available: 0 pcs.
Leadtime: 10 Weeks **
Total Price:
19.69 € *
Price list
Quantity
Price per unit*
1 pcs.
19.6945 €
10 pcs.
18.1118 €
50 pcs.
16.8504 €
100 pcs.
15.3272 €
*incl. VAT plus shipping costs
**Subject to prior sale
IEC plug C20, 6136.0178.0310, SCHURTER
Features
- Unwired
- Snap-in version front side
- Protection class I
- Circuit breaker type TA35
Applications
- Suitable for use in equipment
- Suitable for appliances with protection class I
Technical specifications
| Anschluss | Steckanschluss | |
| Ausführung | Kombielement | |
| Bauform | gerade | |
| Farbe Netzschalter | rot/transparent | |
| Farbe | schwarz | |
| IEC-Bezeichnung | C20 | |
| Montage | Schnappmontage | |
| Nennspannung IEC | 250 V | |
| Nennspannung UL/CSA | 250 V | |
| Nennstrom IEC | 16 A | |
| Nennstrom UL/CSA | 20 A | |
| Netzfilter vorhanden | No | |
| Netzschalter beleuchtet | Yes | |
| Netzschalter vorhanden | Yes | |
| Plattenstärke | 2 mm | |
| Polzahl Netzschalter | 1-polig | |
| Polzahl | 2-polig | |
| Sicherungshalter vorhanden | No | |
| Stifttemperatur | 70 °C | |
| Verriegelung | Nein |
Download
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | Yes |
