6136.0255.0210 | SCHURTER
Combination element C20, 2 pole, Snap-in mounting, plug-in connection, black, 6136.0255.0210
Order No.: 59P0225
EAN: 4099891582623
MPN:
6136.0255.0210
6136-CFTBL150C0-000-1112-1000
Series: 6136
Unit Price (€ / pc.)
12.4950 € *
Available: 0 pcs.
Leadtime: 10 Weeks **

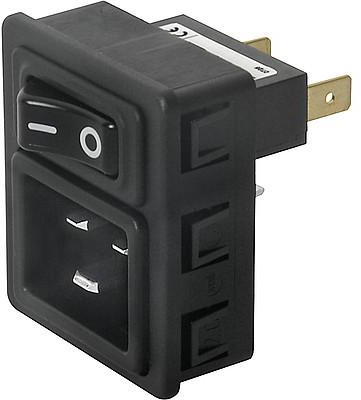

IEC plug C20, 6136.0255.0210, SCHURTER
Features
- Unwired
- Snap-in version front side
- Protection class I
- Circuit breaker type TA35
Applications
- Suitable for use in equipment
- Suitable for appliances with protection class I
Technical specifications
| Anschluss | Steckanschluss | |
| Ausführung | Kombielement | |
| Bauform | gerade | |
| Farbe Netzschalter | schwarz | |
| Farbe | schwarz | |
| IEC-Bezeichnung | C20 | |
| Montage | Schnappmontage | |
| Nennspannung IEC | 250 V | |
| Nennspannung UL/CSA | 250 V | |
| Nennstrom IEC | 16 A | |
| Nennstrom UL/CSA | 20 A | |
| Netzfilter vorhanden | No | |
| Netzschalter beleuchtet | No | |
| Netzschalter vorhanden | Yes | |
| Plattenstärke | 1.5 mm | |
| Polzahl Netzschalter | 1-polig | |
| Polzahl | 2-polig | |
| Sicherungshalter vorhanden | No | |
| Stifttemperatur | 70 °C | |
| Verriegelung | Nein |
Download
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | Yes |
