6145.0617.001 | SCHURTER

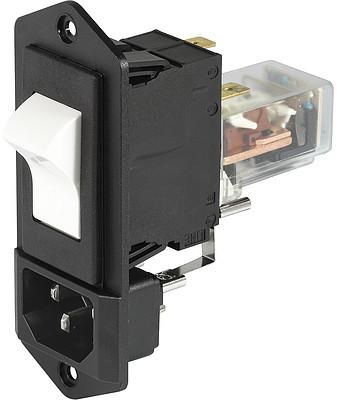

Combination element C14, screw mounting, plug-in connection, black, 6145.0617.001
Not suitable for new designs, LTB: 03.30.2025
Unit Price (€ / pc.)
27.1677 € *
Available: 0 pcs.
Leadtime: 11 Weeks **
Total Price:
27.17 € *
Price list
Quantity
Price per unit*
1 pcs.
27.1677 €
10 pcs.
24.9900 €
25 pcs.
22.9908 €
50 pcs.
20.9202 €
*incl. VAT plus shipping costs
**Subject to prior sale
IEC plug C14, 6145.0617.001, SCHURTER
Features
- Quick connect terminals 6.3 x 0.8 mm
- Circuit breaker type TA45
- Protection class I
- Screw-on mounting front side
Applications
- Suitable for use in equipment
- Suitable for appliances with protection class I
Technical specifications
| Connection | plug-in connection | |
| Version | Combination element | |
| Design | straight | |
| Swich colour | white | |
| Colour | black | |
| IEC designation | C14 | |
| Assembly | screw mounting | |
| Rated voltage IEC | 250 V | |
| Rated voltage UL/CSA | 250 V | |
| Rated current IEC | 10 A | |
| Rated current UL/CSA | 15 A | |
| Line filter present | No | |
| Switch illuminated | No | |
| Power switch available | Yes | |
| Number of poles switch | 2 pole | |
| Fuse holder present | No | |
| Pin temperature | 70 °C | |
| Type of locking | Yes |
Download
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
