6145.0847.001 | SCHURTER

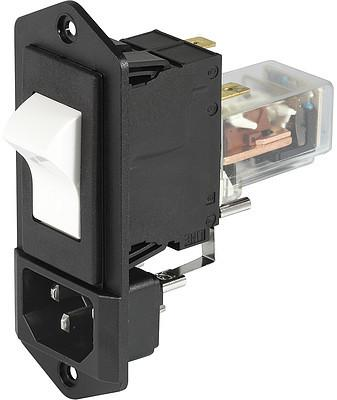

Combination element C14, screw mounting, plug-in connection, black, 6145.0847.001
As an alternative, we recommend the following item:
Panel plug C20, 1 pole, screw mounting, plug-in connection, black, EF11.0035.0010.01
Order No.: 41F1127
Manufacturer: SCHURTER
per pc. 28.9051 € *
*incl. VAT plus shipping costs
IEC plug C14, 6145.0847.001, SCHURTER
Features
- Quick connect terminals 6.3 x 0.8 mm
- Circuit breaker type TA45
- Protection class I
- Screw-on mounting front side
Applications
- Suitable for use in equipment
- Suitable for appliances with protection class I
Technical specifications
| Connection | Steckanschluss | |
| Version | Kombielement | |
| Design | gerade | |
| Swich colour | weiß | |
| Colour | schwarz | |
| IEC designation | C14 | |
| Assembly | Schraubmontage | |
| Rated voltage IEC | 250 V | |
| Rated voltage UL/CSA | 250 V | |
| Rated current IEC | 10 A | |
| Rated current UL/CSA | 15 A | |
| Line filter present | No | |
| Switch illuminated | No | |
| Power switch available | Yes | |
| Number of poles switch | 2-polig | |
| Fuse holder present | No | |
| Pin temperature | 70 °C | |
| Type of locking | Ja |
Download
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
