6145.1477.001 | SCHURTER
Combination element C14, screw mounting, plug-in connection, black, 6145.1477.001
Nicht geeignet für Neudesigns, LTB: 30.03.2025
Unit Price (€ / pc.)
27.1677 € *
Available: 0 pcs.
Leadtime: 10 Weeks **
Total Price:
27.17 € *
Price list
Quantity
Price per unit*
1 pcs.
27.1677 €
10 pcs.
24.9900 €
25 pcs.
22.9908 €
50 pcs.
20.9202 €
*incl. VAT plus shipping costs
**Subject to prior sale

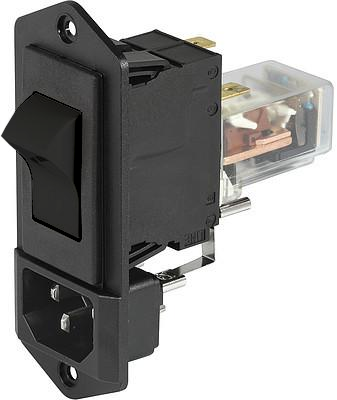

IEC plug C14, 6145.1477.001, SCHURTER
Features
- Quick connect terminals 6.3 x 0.8 mm
- Circuit breaker type TA45
- Protection class I
- Screw-on mounting front side
Applications
- Suitable for use in equipment
- Suitable for appliances with protection class I
Technical specifications
| Anschluss | Steckanschluss | |
| Ausführung | Kombielement | |
| Bauform | gerade | |
| Farbe Netzschalter | schwarz | |
| Farbe | schwarz | |
| IEC-Bezeichnung | C14 | |
| Montage | Schraubmontage | |
| Nennspannung IEC | 250 V | |
| Nennspannung UL/CSA | 250 V | |
| Nennstrom IEC | 10 A | |
| Nennstrom UL/CSA | 15 A | |
| Netzfilter vorhanden | No | |
| Netzschalter beleuchtet | No | |
| Netzschalter vorhanden | Yes | |
| Polzahl Netzschalter | 2-polig | |
| Sicherungshalter vorhanden | No | |
| Stifttemperatur | 70 °C | |
| Verriegelung | Ja |
Download
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | Yes |
