6160.0055 | SCHURTER
Plug C8, 2 pole, screw mounting, solder connection, black, 6160.0055
Unit Price (€ / pc.)
1.1186 € *
Available: 0 pcs.
Leadtime: 11 Weeks **

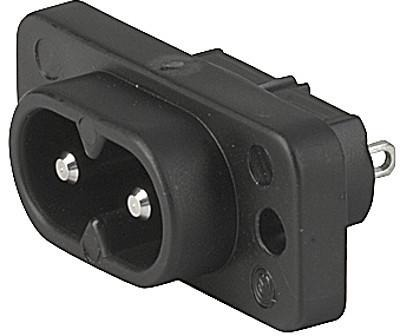

Plug, 6160.0055, SCHURTER
IEC Appliance inlet C8, Front side, Solder terminals.
Features
- Panel mountable
- Housing material: PA6, UL 94V-0
- Protection class: 2
Technical specifications
| Connection | solder connection | |
| Version | plug | |
| Design | straight | |
| Colour | black | |
| IEC designation | C8 | |
| Assembly | screw mounting | |
| Rated voltage IEC | 250 V | |
| Rated voltage UL/CSA | 125 V | |
| Rated current IEC | 2.5 A | |
| Rated current UL/CSA | 7 A | |
| Switch illuminated | No | |
| Power switch available | No | |
| Pin number | 2 pole | |
| Fuse holder present | No | |
| Pin temperature | 70 °C | |
| Type of locking | No |
Download
Logistics
| Country of origin | CZ |
| Customs tariff number | 85366990 |
| MSL | MSL 1 |
| Original Packaging | Carton with 100 pieces |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
