6162.0043 | SCHURTER
Plug C14, 3 pole, screw mounting, plug-in connection, black, 6162.0043
Unit Price (€ / pc.)
2.3562 € *
Available: 3 pcs.
Next delivery: 100 pcs. on 2025-03-07
Leadtime: 7 Weeks **
Total Price:
2.36 € *
Price list
Quantity
Price per unit*
1 pcs.
2.3562 €
50 pcs.
2.0111 €
100 pcs.
1.9397 €
200 pcs.
1.8564 €
1000 pcs.
1.6541 €
*incl. VAT plus shipping costs
**Subject to prior sale

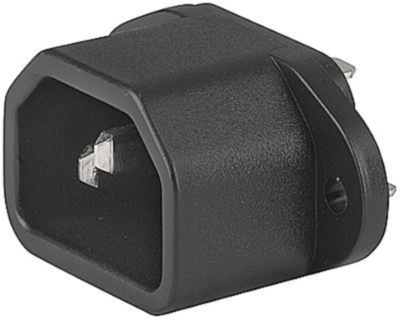

Plug, 6162.0043, SCHURTER
IEC Appliance inlet C14, Screw-on Mounting, Solder terminals.
Features
- Panel mountable
- Housing material: PA6, UL 94V-0
- Protection class: 1
Technical specifications
| Anschluss | Steckanschluss | |
| Ausführung | Stecker | |
| Bauform | gerade | |
| Farbe | schwarz | |
| IEC-Bezeichnung | C14 | |
| Montage | Schraubmontage | |
| Nennspannung IEC | 250 V | |
| Nennspannung UL/CSA | 250 V | |
| Nennstrom IEC | 10 A | |
| Nennstrom UL/CSA | 15 A | |
| Netzfilter vorhanden | No | |
| Netzschalter beleuchtet | No | |
| Netzschalter vorhanden | No | |
| Polzahl | 3-polig | |
| Sicherungshalter vorhanden | No | |
| Stifttemperatur | 70 °C | |
| Verriegelung | Nein |
Download
Logistics
| Ursprungsland | CZ |
| Zolltarifnummer | 85366990 |
| MSL | MSL 1 |
| Originalverpackung | Karton mit 50 Stück |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | Yes |
