6173.0011 | SCHURTER

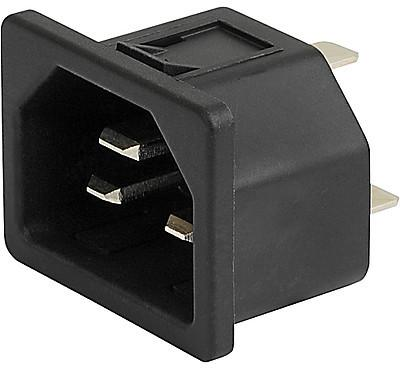

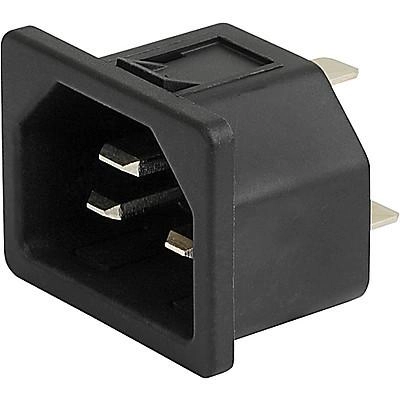

Plug C22, snap-in, solder connection, black, 6173.0011
Unit Price (€ / pc.)
1.9992 € *
Available: 0 pcs.
Leadtime: 11 Weeks **
IEC appliance inlet C22, 6173.0011, SCHURTER
Features
- Safety of electrical appliances for household and similar purposes
- For very hot conditions 155°C
- Protection class I
Applications
- Suitable for appliances with protection class I
Technical specifications
| Connection | solder connection | |
| Version | panel plug | |
| Design | straight | |
| Colour | black | |
| IEC designation | C22 | |
| Assembly | snap-in | |
| Rated voltage IEC | 250 V | |
| Rated voltage UL/CSA | 250 V | |
| Rated current IEC | 16 A | |
| Rated current UL/CSA | 20 A | |
| Line filter present | No | |
| Switch illuminated | No | |
| Power switch available | No | |
| Panel thickness | 2 mm | |
| Fuse holder present | No | |
| Pin temperature | 155 °C | |
| Type of locking | No |
Download
Logistics
| Country of origin | CZ |
| Customs tariff number | 85366990 |
| Original Packaging | Carton with 50 pieces |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
