6600.3300.21 | SCHURTER
Built-in appliance socket F, 3 pole, screw mounting, plug-in connection, black, 6600.3300.21
Unit Price (€ / pc.)
1.9516 € *
Available: 78 pcs.
Leadtime: 12 Weeks **
Total Price:
1.95 € *
Price list
Quantity
Price per unit*
1 pcs.
1.9516 €
50 pcs.
1.6422 €
100 pcs.
1.5827 €
200 pcs.
1.5232 €
1000 pcs.
1.3685 €
*incl. VAT plus shipping costs
**Subject to prior sale

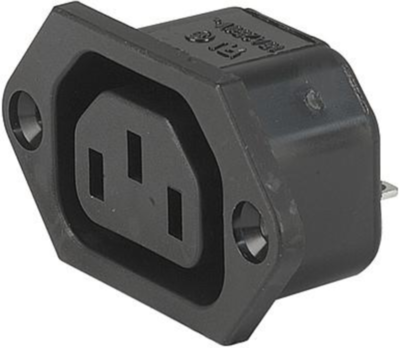

Plug, 6600.3300.21, SCHURTER
IEC Appliance outlet F, Screw-on mounting, Front side, Quick-connect terminals.
Features
- Panel mountable
- 1 Function
- Housing material: Thermoplastic, UL 94V-0
- Protection class: 1
Technical specifications
| Connection | plug-in connection | |
| Version | socket | |
| Design | straight | |
| Colour | black | |
| IEC designation | F | |
| Assembly | screw mounting | |
| Rated voltage IEC | 250 V | |
| Rated voltage UL/CSA | 250 V | |
| Rated current IEC | 10 A | |
| Rated current UL/CSA | 15 A | |
| Line filter present | No | |
| Switch illuminated | No | |
| Power switch available | No | |
| Panel thickness | 8 mm | |
| Pin number | 3 pole | |
| Fuse holder present | No | |
| Pin temperature | 70 °C | |
| Type of locking | No |
Download
Logistics
| Country of origin | CZ |
| Customs tariff number | 85366990 |
| MSL | MSL 1 |
| Original Packaging | Carton with 50 pieces |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
