6610.2013 | SCHURTER
Built-in appliance socket F, 3 pole, snap-in, IDC connection, 2.5 mm², black, 6610.2013
Unit Price (€ / pc.)
1.4399 € *
Available: 0 pcs.
Leadtime: 23 Weeks **

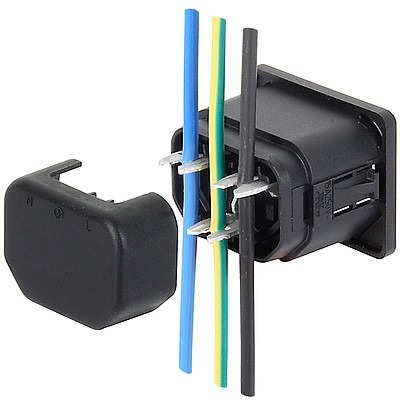

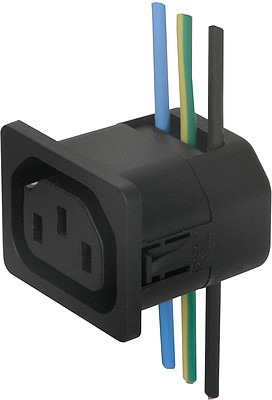

IEC Appliance outlet F, 6610.2013, SCHURTER
The 6610.2013 is a IEC Appliance Outlet F with front side snap-in mounting and IDC Terminal.
Features
- Significant reduces labor costs
- Cross and along orientation
- Ideal for PDU applications
- Protection cover can be used as wire press
Technical specifications
| Anschluss | Schneidklemmanschluss | |
| Ausführung | Buchse | |
| Bauform | gerade | |
| Farbe | schwarz | |
| IEC-Bezeichnung | F | |
| Leiterquerschnitt | 2,5 mm² | |
| Montage | Snap-in | |
| Nennspannung IEC | 250 V | |
| Nennspannung UL/CSA | 250 V | |
| Nennstrom IEC | 10 A | |
| Nennstrom UL/CSA | 15 A | |
| Netzfilter vorhanden | No | |
| Netzschalter beleuchtet | No | |
| Netzschalter vorhanden | No | |
| Plattenstärke | 1.2 mm | |
| Polzahl | 3-polig | |
| Sicherungshalter vorhanden | No | |
| Stifttemperatur | 70 °C | |
| Verriegelung | Ja |
Download
Logistics
| Ursprungsland | CH |
| Zolltarifnummer | 85366990 |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | Yes |
