6650.4515 | SCHURTER

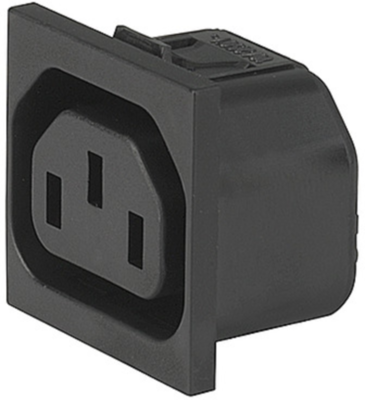

Built-in appliance socket F, 3 pole, snap-in, PCB connection, black, 6650.4515
Unit Price (€ / pc.)
1.6541 € *
Available: 0 pcs.
Leadtime: 20 Weeks **
Plug, 6650.4515, SCHURTER
IEC Appliance outlet F, mates to Felcom.
Features
- For PCB mounting
- 1 Function
- Housing material: Thermoplastic, UL 94V-0
- Protection class: 1
Technical specifications
| Connection | PCB connection | |
| Version | socket | |
| Colour | black | |
| IEC designation | F | |
| Assembly | snap-in | |
| Rated voltage IEC | 250 V | |
| Rated voltage UL/CSA | 250 V | |
| Rated current IEC | 10 A | |
| Rated current UL/CSA | 15 A | |
| Line filter present | No | |
| Switch illuminated | No | |
| Power switch available | No | |
| Panel thickness | 1.5 mm | |
| Pin number | 3 pole | |
| Fuse holder present | No | |
| Pin temperature | 70 °C | |
| Type of locking | No |
Download
Logistics
| Country of origin | CZ |
| Customs tariff number | 85366990 |
| MSL | MSL 1 |
| Original Packaging | Carton with 50 pieces |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
