9009.0221 | SCHURTER

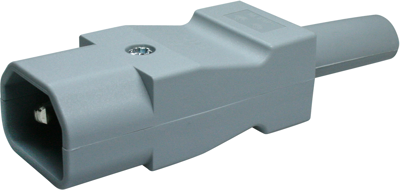

Device connection plug E, 3 pole, cable assembly, screw connection, 1.5 mm², gray, 9009.0221
Unit Price (€ / pc.)
7.6160 € *
Available: 0 pcs.
Next delivery: 50 pcs. on 2025-02-28
Leadtime: 19 Weeks **
Total Price:
7.62 € *
Price list
Quantity
Price per unit*
1 pcs.
7.6160 €
10 pcs.
6.9377 €
50 pcs.
6.3784 €
100 pcs.
5.7358 €
*incl. VAT plus shipping costs
**Subject to prior sale
IEC cord connectors, type Schurter 9009.
To IEC/EN 60320-1, for cable mounting, pin temperatures up to +70 °C; Connection: screw terminals, 2-pole + ground contact, 10 A/250 VAC (ENEC), 15 A/250 VAC (UL/CSA). Degree of protection (at the front): IP 20 to IEC 60529, suitable for devices with safety class I to IEC 61140. Housing material: polyamide (PA6), UL 94 V-0. Certifications: ENEC, UL, CSA. Note: The versions for 8.0 mm diameter can be cut off to suit a 10 mm cable diameter.

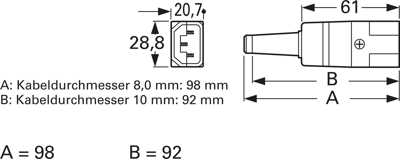

Technical attributes (type, color, for cable diameter): 9009.0221, gray, 10 mm
Technical specifications
| Anschluss | Schraubanschluss | |
| Ausführung | Stecker | |
| Bauform | gerade | |
| Farbe | grau | |
| IEC-Bezeichnung | E | |
| Kabeldurchmesser | 10 mm | |
| Leiterquerschnitt | 1,5 mm² | |
| Montage | Kabelmontage | |
| Nennspannung IEC | 250 V | |
| Nennspannung UL/CSA | 250 V | |
| Nennstrom IEC | 10 A | |
| Nennstrom UL/CSA | 15 A | |
| Netzfilter vorhanden | No | |
| Netzschalter beleuchtet | No | |
| Netzschalter vorhanden | No | |
| Polzahl | 3-polig | |
| Sicherungshalter vorhanden | No | |
| Stifttemperatur | 70 °C | |
| Verriegelung | Nein |
Download
Logistics
| Ursprungsland | CZ |
| Zolltarifnummer | 85366990 |
| Originalverpackung | Karton mit 50 Stück |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | Yes |
