DC11.0021.006 | SCHURTER

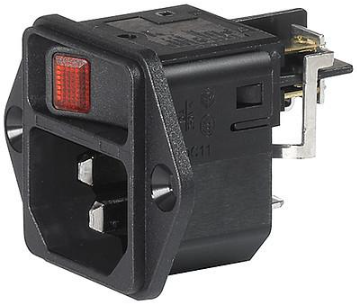

Combination element C14 or C18, 3 pole/2 pole, screw mounting, plug-in connection, black, DC11.0021.006
Unit Price (€ / pc.)
11.9119 € *
Available: 0 pcs.
Leadtime: 9 Weeks **
Total Price:
11.91 € *
Price list
Quantity
Price per unit*
1 pcs.
11.9119 €
10 pcs.
10.9599 €
50 pcs.
10.0793 €
100 pcs.
9.1749 €
*incl. VAT plus shipping costs
**Subject to prior sale
Plug, DC11.0021.006, SCHURTER
IEC Appliance inlet C14 with line switch.
Features
- Panel mountable
- V-Lock notch standard
- Line switch for high inrush currents
- Housing material: Thermoplastic, UL 94V-0
- Protection class: 1
Technical specifications
| Connection | Steckanschluss | |
| Version | Stecker | |
| Design | gerade | |
| Swich colour | rot | |
| Colour | schwarz | |
| IEC designation | C14 oder C18 | |
| Assembly | Schraubmontage | |
| Rated voltage IEC | 250 V | |
| Rated voltage UL/CSA | 250 V | |
| Rated current IEC | 10 A | |
| Rated current UL/CSA | 15 A | |
| Line filter present | No | |
| Switch illuminated | Yes | |
| Power switch available | Yes | |
| Panel thickness | 6 mm | |
| Number of poles switch | 2-polig | |
| Pin number | 3-polig/2-polig | |
| Fuse holder present | No | |
| Pin temperature | 70 °C | |
| Type of locking | Ja |
Download
Logistics
| Country of origin | CZ |
| Customs tariff number | 85366990 |
| MSL | MSL 1 |
| Original Packaging | Karton mit 50 Stück |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
