DC21.0021.1111.21 | SCHURTER

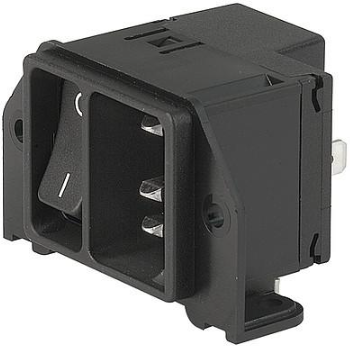

Plug C14, 3 pole, screw mounting, PCB connection, black, DC21.0021.1111.21
Unit Price (€ / pc.)
11.1146 € *
Available: 0 pcs.
Leadtime: 16 Weeks **
Total Price:
11.11 € *
Price list
Quantity
Price per unit*
1 pcs.
11.1146 €
10 pcs.
10.1150 €
50 pcs.
9.1035 €
100 pcs.
8.1991 €
*incl. VAT plus shipping costs
**Subject to prior sale
Plug, DC21.0021.1111.21, SCHURTER
IEC Appliance inlet C14 with line switch 2-pole.
Features
- Panel mountable
- 2 Functions
- All single elements are already wired
- Housing material: Thermoplastic, UL 94V-0
- Protection class: 1
Technical specifications
| Connection | PCB connection | |
| Version | plug | |
| Design | straight | |
| Colour | black | |
| IEC designation | C14 | |
| Assembly | screw mounting | |
| Rated voltage IEC | 250 V | |
| Rated voltage UL/CSA | 250 V | |
| Rated current IEC | 10 A | |
| Rated current UL/CSA | 15 A | |
| Line filter present | No | |
| Switch illuminated | No | |
| Power switch available | Yes | |
| Panel thickness | 3.5 mm | |
| Number of poles switch | 2 pole | |
| Pin number | 3 pole | |
| Fuse holder present | No | |
| Pin temperature | 70 °C | |
| Type of locking | Yes |
Download
Logistics
| Country of origin | CZ |
| Customs tariff number | 85366990 |
| MSL | MSL 1 |
| Original Packaging | Carton with 40 pieces |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
