DD11.0124.1110 | SCHURTER
Plug C14, 3 pole, screw mounting, plug-in connection, black, DD11.0124.1110
Unit Price (€ / pc.)
14.5894 € *
Available: 0 pcs.
Next delivery: 100 pcs. on 2025-06-06
Leadtime: 7 Weeks **
Total Price:
14.59 € *
Price list
Quantity
Price per unit*
1 pcs.
14.5894 €
10 pcs.
12.8520 €
50 pcs.
11.9714 €
200 pcs.
11.2574 €
400 pcs.
10.8290 €
*incl. VAT plus shipping costs
**Subject to prior sale

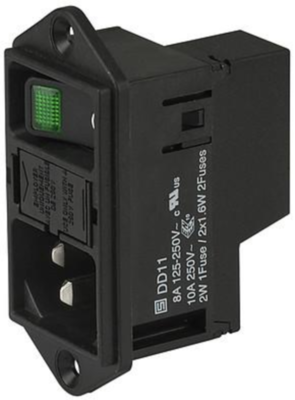

Plug, DD11.0124.1110, SCHURTER
IEC Appliance inlet C14 with line switch 2-pole, Fuseholder 2-pole.
Features
- Panel mountable
- 3 Functions
- Fuseholder for fuse links
- Housing material: Thermoplastic, UL 94V-0
- Protection class: 1
Technical specifications
| Connection | Steckanschluss | |
| Version | Stecker | |
| Design | gerade | |
| Swich colour | grün | |
| Colour | schwarz | |
| IEC designation | C14 | |
| Assembly | Schraubmontage | |
| Rated voltage IEC | 250 V | |
| Rated voltage UL/CSA | 250 V | |
| Rated current IEC | 10 A | |
| Rated current UL/CSA | 10 A | |
| Line filter present | No | |
| Switch illuminated | Yes | |
| Power switch available | Yes | |
| Panel thickness | 8 mm | |
| Number of poles switch | 2-polig | |
| Number of poles fuse holder | 2-polig | |
| Pin number | 3-polig | |
| Fuse holder present | Yes | |
| Pin temperature | 70 °C | |
| Type of locking | Ja |
Download
Logistics
| Country of origin | CZ |
| Customs tariff number | 85366990 |
| MSL | MSL 1 |
| Original Packaging | Karton mit 50 Stück |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
