DF11.0470.0013.019 | SCHURTER

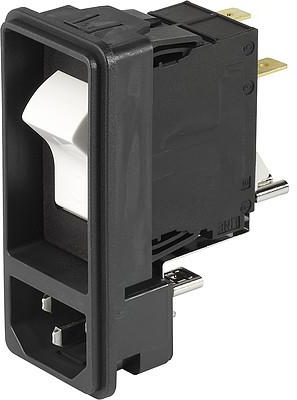

Combination element C14, Snap-in mounting, plug-in connection, black, DF11.0470.0013.019
Order No.: 59P0333
EAN: 4099891583699
MPN:
DF11.0470.0013.019
DF11-ABDWF100C0-000-331-309
Series: DF11
Unit Price (€ / pc.)
26.3942 € *
Available: 0 pcs.
Leadtime: 10 Weeks **
IEC Combination element C14, DF11.0470.0013.019, SCHURTER
Features
- Quick connect terminals 6.3 x 0.8 mm
- Circuit breaker type TA45
Applications
- Suitable for use in equipment
- Suitable for appliances with protection class I or II
Technical specifications
| Anschluss | Steckanschluss | |
| Ausführung | Kombielement | |
| Bauform | gerade | |
| Farbe Netzschalter | weiß | |
| Farbe | schwarz | |
| IEC-Bezeichnung | C14 | |
| Montage | Schnappmontage | |
| Nennspannung IEC | 250 V | |
| Nennspannung UL/CSA | 250 V | |
| Nennstrom IEC | 10 A | |
| Nennstrom UL/CSA | 15 A | |
| Netzfilter vorhanden | No | |
| Netzschalter beleuchtet | No | |
| Netzschalter vorhanden | Yes | |
| Plattenstärke | 2 mm | |
| Polzahl Netzschalter | 2-polig | |
| Sicherungshalter vorhanden | No | |
| Stifttemperatur | 70 °C | |
| Verriegelung | Ja |
Download
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | Yes |
