EC11.0031.401 | SCHURTER

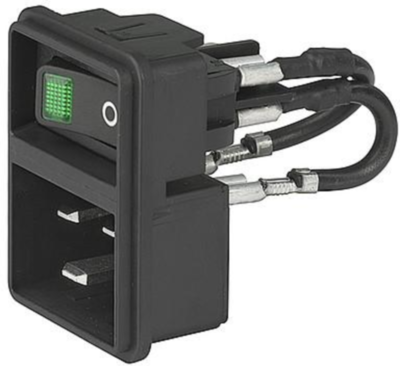

Combination element C20, 3 pole, snap-in, plug-in connection, black, EC11.0031.401
Unit Price (€ / pc.)
19.7659 € *
Available: 0 pcs.
Leadtime: 10 Weeks **
Total Price:
19.77 € *
Price list
Quantity
Price per unit*
1 pcs.
19.7659 €
10 pcs.
18.1832 €
50 pcs.
16.7314 €
100 pcs.
15.2201 €
*incl. VAT plus shipping costs
**Subject to prior sale
Plug, EC11.0031.401, SCHURTER
IEC Appliance inlet C20 with line switch, 2-pole.
Features
- Panel mountable
- 2 Functions
- All single elements are already wired
- Housing material: Thermoplastic, UL 94V-0
- Protection class: 1
Technical specifications
| Connection | plug-in connection | |
| Version | plug | |
| Design | straight | |
| Swich colour | green | |
| Colour | black | |
| IEC designation | C20 | |
| Assembly | snap-in | |
| Rated voltage IEC | 250 V | |
| Rated voltage UL/CSA | 250 V | |
| Rated current IEC | 16 A | |
| Rated current UL/CSA | 20 A | |
| Line filter present | No | |
| Switch illuminated | Yes | |
| Power switch available | Yes | |
| Panel thickness | 2.5 mm | |
| Number of poles switch | 2 pole | |
| Pin number | 3 pole | |
| Fuse holder present | No | |
| Pin temperature | 70 °C | |
| Type of locking | No |
Download
Logistics
| Country of origin | SK |
| Customs tariff number | 85366990 |
| MSL | MSL 1 |
| Original Packaging | Carton with 25 pieces |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
